Hervorragendes und günstiges Mini Touch Display

pitti · 10. Juli 2024 um 08:40

So, mein erster Spieltrieb ist gestillt, d.h. habe mal direkt am Gerät designed und experimentiert.
Richtig viel im Zusammenspiel mit IPS noch nicht gemacht, aber Temperatur und Schalter war relativ einfach über das passende Modul.
Auch das Konfigurieren und das Schalten des/der Relais habe ich hinbekommen.
Hier mal ein paar Bilder und Infos - vielleicht hilft es dem einen oder anderen!

Erstmal mein Design … wer erkennt es

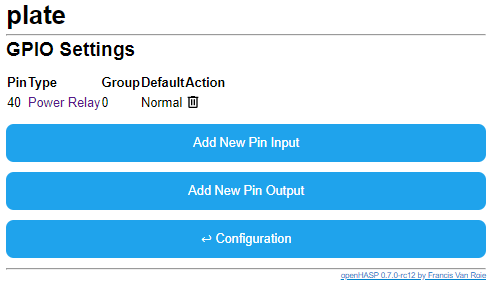

Und hier die Konfiguration der Relais via GPIO …

und paar Demo-Buttons zum Schalten (via Gruppen-ID) …

{"page":1,"id":2,"obj":"btn","x":9,"y":60,"w":148,"h":300,"toggle":true,"text":"\uE335","text_font":32,"mode":"break","align":1,"groupid":1}
{"page":1,"id":3,"obj":"btn","x":167,"y":60,"w":148,"h":300,"toggle":true,"text":"\uE335","text_font":32,"mode":"break","align":1,"groupid":2}
{"page":1,"id":4,"obj":"btn","x":324,"y":60,"w":148,"h":300,"toggle":true,"text":"\uE335","text_font":32,"mode":"break","align":1,"groupid":3}

Viel Spaß
Heiko

firebuster · 10. Juli 2024 um 10:34

Das sieht super aus
Vielleicht kannst du die notwendigen Parameter dazu auch teilen

pitti · 10. Juli 2024 um 10:39

Klar doch …

{"comment":" ----------- Page 00 - ON TOP ------------"}
{"page":0,"id":01,"obj":"label","x":5,"y":0,"h":32,"w":200,"text": "01.01.1970", "template": "%d.%m.%Y","text_color":"#FFFFFF","align":"left", "enabled":0, "text_font":24}
{"page":0,"id":02,"obj":"label","x":385,"y":0,"h":32,"w":90,"text": "00:00:00", "template": "%T","text_color":"#FFFFFF","align":"right", "enabled":0, "text_font":24}

{"page":0,"id":03,"obj":"btn","action":{"down": "page prev"},"x":005,"y":42,"w":150,"h":48,"text":"\uE04D","text_color":"#FFFFFF","radius":10,"border_side":0,"bg_grad_dir":0,"text_font":32}
{"page":0,"id":04,"obj":"btn","action":{"down": "page back"},"x":165,"y":42,"w":150,"h":48,"text":"\uE2DC","text_color":"#FFFFFF","radius":10,"border_side":0,"bg_grad_dir":0,"text_font":32}
{"page":0,"id":05,"obj":"btn","action":{"down": "page next"},"x":325,"y":42,"w":150,"h":48,"text":"\uE054","text_color":"#FFFFFF","radius":10,"border_side":0,"bg_grad_dir":0,"text_font":32}

{"comment":" ----------- Page 01 - MENU --------------"}
{"page":01,"id":10,"obj":"btn","x":005,"y":105,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE6B5\n#FFFFFF Licht","text_color":"#FFC107","text_font":32, "align":"center", "action":{"up": "page 2"}}
{"page":01,"id":20,"obj":"btn","x":165,"y":105,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uF40B\n#FFFFFF Strom","text_color":"#F35A2C","text_font":32, "align":"center", "action":{"up": "page 3"}}
{"page":01,"id":30,"obj":"btn","x":325,"y":105,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE10B\n#FFFFFF Verkehr","text_color":"#58A906","text_font":32, "align":"center", "action":{"up": "page 4"}}
{"page":01,"id":40,"obj":"btn","x":005,"y":233,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE0ED\n#FFFFFF Termine","text_color":"#11A0F3","text_font":32, "align":"center", "action":{"up": "page 5"}}
{"page":01,"id":50,"obj":"btn","x":165,"y":233,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE4C3\n#FFFFFF Musik","text_color":"#8619e6","text_font":32, "align":"center", "action":{"up": "page 6"}}
{"page":01,"id":60,"obj":"btn","x":325,"y":233,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uEA7A\n#FFFFFF Müll","text_color":"#999A9C","text_font":32, "align":"center", "action":{"up": "page 7"}}
{"page":01,"id":70,"obj":"btn","x":005,"y":361,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE425\n#FFFFFF Schalter","text_color":"#FFC107","text_font":32, "align":"center","groupid":1}
{"page":01,"id":80,"obj":"btn","x":165,"y":361,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE5A8\n#FFFFFF Wetter","text_color":"#DB7A00","text_font":32, "align":"center", "action":{"up": "page 09"}}
{"page":01,"id":90,"obj":"btn","x":325,"y":361,"w":150,"h":118,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"text":"\uE493\n#FFFFFF System","text_color":"#24625B","text_font":32, "align":"center", "action":{"up": "page 10"}}

{"comment":" ----------- Page 10 - SYSTEM --------------"}
{"page":10,"id":11,"obj":"label","x":00,"y":120,"h":40,"w":480,"text":"ARBEITSZIMMER","align":1,"text_color":"#24625B"}
{"page":10,"id":21,"obj":"label","x":20,"y":200,"h":40,"w":200,"text":"Hostname:","align":0,"text_color":"#FFF"}
{"page":10,"id":22,"obj":"label","x":220,"y":200,"h":40,"w":260,"text":"%hostname%","align":0,"text_color":"#FFF"}
{"page":10,"id":31,"obj":"label","x":20,"y":250,"h":40,"w":200,"text":"IP:","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":32,"obj":"label","x":220,"y":250,"h":40,"w":260,"text":"%ip%","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":41,"obj":"label","x":20,"y":300,"h":40,"w":200,"text":"Model:","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":42,"obj":"label","x":220,"y":300,"h":40,"w":260,"text":"%model%","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":51,"obj":"label","x":20,"y":350,"h":40,"w":200,"text":"Version:","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":52,"obj":"label","x":220,"y":350,"h":40,"w":260,"text":"%version%","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":61,"obj":"label","x":20,"y":400,"h":40,"w":200,"text":"SSID:","align":0,"text_color":"#FFFFFF"}
{"page":10,"id":62,"obj":"label","x":220,"y":400,"h":40,"w":260,"text":"%ssid%","align":0,"text_color":"#FFFFFF"}

{"comment":" ----------- Page - NAVIGATION --------------"}
{"page":10,"id":00,"next":01}
{"page":01,"id":00,"prev":10}

Gruß Heiko

bgersmann · 11. Juli 2024 um 06:23

Hast du die Strom Page schon fertig? Bin mir sicher, die kann man sich bei dir gut klauen

pitti · 11. Juli 2024 um 06:56

Noch nicht, aber wenn ich so weit bin stelle ich es gern zur Verfügung!

Gruß Heiko

Hagbard235 · 11. Juli 2024 um 09:29

Ja, 2 Pole sind für 5V Gleichstrom, welche bei dem Modell es sind müsstest du einfach mal am Netzteil durchmessen, das wechselt ja leider (das Display ist da ja baugleich mit vielen anderen Tuya/Sonoff etc.)

ralf · 11. Juli 2024 um 09:32

DIe Belegung ist ja schon in diesem Threat genannt worden ;-).

Hagbard235 · 11. Juli 2024 um 09:47

super, danke, das hatte ich nicht gesehen

mb-stern · 11. Juli 2024 um 10:40

Habe das Display erhalten und versucht, es mit OpenHASP zu flashen, wie im ersten Beitrag beschrieben.
Habe mit dem auf der Webseite intgrierten Flash-Tool versucht, jedoch erhalte ich eine Fehlermeldung.
Das USB-Kabel scheint aber in Ordnung zu sein da das Display auf COM4 gefunden wird.
Hat jemand ähnliche Probleme gehabt?
Mit welchem Tool habt ihr OpenHASP aufgespielt?

pitti · 11. Juli 2024 um 11:11

Nee, auch über die Website! Habe gar nicht geschaut welcher COM-Port er genutzt hat!

Ging das Display bzw. geht das Display denn an wenn mit Rechner verbunden?
Bei mir war das erste Kabel auch nicht erfolgreich!

Gruß Heiko

firebuster · 11. Juli 2024 um 11:14

Hast du Chrome verwendet?

mb-stern · 11. Juli 2024 um 13:17

Habe Edge verwendet, ist ja eigentlich dasselbe wie Chrome…
Das Display ging an beim verbinden mit dem Rechner und es wurde auch erkannt…

firebuster · 11. Juli 2024 um 13:41

Naja … heißt ja nicht, dass es nur die Chromium Engine ist sondern vielleicht braucht es das Chrome mit den Paketen drum
Rum

pitti · 11. Juli 2024 um 14:47

Weiß jemand wie man bei eine „Arc“ die Farbe des Indicator-Bogens ändert? bg_color10 funzt irgendwie nicht!

Gruß Heiko

pitti · 11. Juli 2024 um 14:54

Selber herausgefunden => „line_color1“: „#ffffff“

pitti · 11. Juli 2024 um 16:31

Eine weitere Kachel ist vom Design her fertig

{"comment":" ----------- Page 09 - WETTER --------------"}
{"page":09,"id":10,"obj":"obj",  "x":005,"y":105,"w":470,"h":370,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"click":0}

{"page":09,"id":11,"obj":"label","x":020,"y":120,"w":140,"h":140,"align":"left","border_side":0,"text_color":"#00CDAB","text_font":126,"text":"\uE595"}
{"page":09,"id":21,"obj":"label","x":305,"y":120,"h":80,"w":150,"align":"right","border_side":0,"text_color":"#FFFFFF","text_font":72,"text":"22°C"}
{"page":09,"id":31,"obj":"label","x":195,"y":210,"h":80,"w":260,"align":"right","border_side":0,"text_color":"#C0C0C0","text_font":32,"text":"Teilweise bewölkt"}

{"page":09,"id":61,"obj":"arc",  "x":015,"y":290,"w":130,"h":130,"min":0,"max":100,"val":100,"bg_opa":0,"border_side":0,"start_angle":0,"end_angle":360,"adjustable":false,"line_width": 3,"line_width10": 3,"line_color10":"#00CDAB","value_font":24, "value_str":"50 %"}
{"page":09,"id":62,"obj":"label","x":005,"y":430,"w":150,"h":048,"align":"center","border_side":0,"text_color":"#FFFFFF","text_font":24,"text":"Luftfeuchte"}

{"page":09,"id":71,"obj":"arc",  "x":175,"y":290,"w":130,"h":130,"min":0,"max":100,"val":100,"bg_opa":0,"border_side":0,"start_angle":0,"end_angle":360,"adjustable":false,"line_width": 3,"line_width10": 3,"line_color10":"#00CDAB","value_font":24, "value_str":"16 %"}
{"page":09,"id":72,"obj":"label","x":165,"y":430,"w":150,"h":048,"align":"center","border_side":0,"text_color":"#FFFFFF","text_font":24,"text":"Regen"}

{"page":09,"id":81,"obj":"arc",  "x":335,"y":290,"w":130,"h":130,"min":0,"max":100,"val":100,"bg_opa":0,"border_side":0,"start_angle":0,"end_angle":360,"adjustable":false,"line_width": 3,"line_width10": 3,"line_color10":"#00CDAB","value_font":24, "value_str":"14 km/h"}
{"page":09,"id":82,"obj":"label","x":325,"y":430,"w":150,"h":048,"align":"center","border_side":0,"text_color":"#FFFFFF","text_font":24,"text":"Wind"}

Viel Spaß

richimaint · 11. Juli 2024 um 19:43

Und wie verlinkst du die Werte zu den Variablen von Symcon?
Über das openHASP Modul geht das ja.

richimaint

pitti · 12. Juli 2024 um 06:52

Schreib ich im Laufe des Tages Man wird mich lieben oder hassen …

Bis dahin
Heiko

pitti · 12. Juli 2024 um 09:51

Next Page …

{"comment":" ----------- Page 07 - MÜLL --------------"}
{"page":07,"id":10,"obj":"obj",  "x":005,"y":105,"w":470,"h":370,"bg_color":"#1D1D22","bg_grad_dir":0,"radius":10,"border_side":0,"click":0}

{"page":07,"id":11,"obj":"label","x":020,"y":115,"w":460,"h":140,"align":"center","border_side":0,"text_font":126,"text":"#999A9C \uEA7A# #FFC107 \uEA7A#"}
{"page":07,"id":21,"obj":"label","x":020,"y":270,"w":460,"h":040,"align":"center","border_side":0,"text_color":"#FFFFFF","text_font":32,"text":"Restmüll, Gelber Sack"}
{"page":07,"id":31,"obj":"label","x":020,"y":340,"w":460,"h":200,"align":"center","border_side":0,"text_color":"#C0C0C0","text_font":24,"text":"Nächste Abholung:\nin 6 Tagen\nam Montag 10.10."}

Jetzt noch den Sync configurieren Dann schreibe ich mal wie das bei mir geht …

Gruß Heiko

pitti · 12. Juli 2024 um 12:21

Sooo, Müllseite ist jetzt auch mit IPS verbunden und damit laufen schon mal 4 Seiten bei mir

Klingt viel - sind aber nur 3 Typen => Label, Arc und Switch!

Wie das bei mir läuft - schreibe ich jetzt gleich in den Thread vom openHASP Modul. Passt da etwas besser hin!

Also, bis gleich
Heiko

PS: Da man nur 3 Posts hintereinander machen darf - kommt hier nix mehr von mir
